FFdecoder API¶

class FFdecoder:
    """
    > FFdecoder API compiles and executes the FFmpeg pipeline inside a subprocess pipe for generating real-time, low-overhead, lightning fast video frames
    with robust error-handling in python 🎞️⚡

    FFdecoder API implements a **standalone highly-extensible wrapper around [FFmpeg](https://ffmpeg.org/)** multimedia framework that provides complete
    control over the underline pipeline including **access to almost any FFmpeg specification thinkable** such as framerate, resolution, hardware decoder(s),
    complex filter(s), and pixel format(s) that are readily supported by all well known Computer Vision libraries.

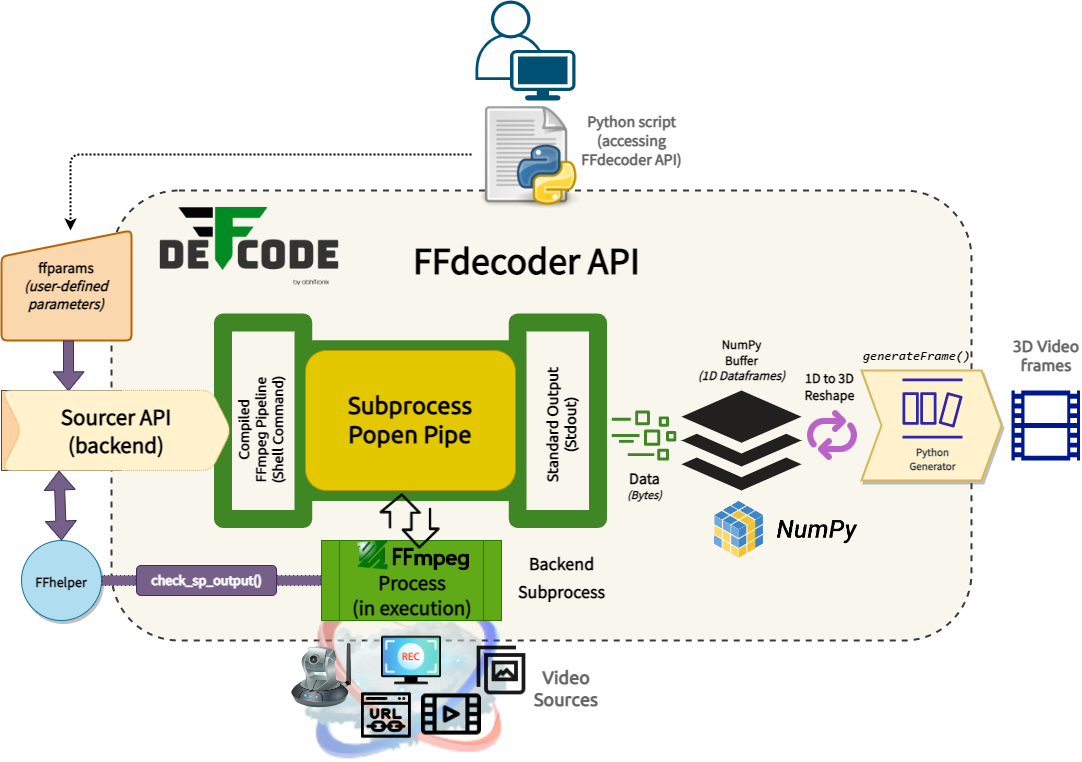

    FFdecoder API **compiles its FFmpeg pipeline** by processing input Video Source metadata and User-defined options, and **runs it inside a
    [`subprocess`](https://docs.python.org/3/library/subprocess.html) pipe** concurrently with the main thread, while extracting output dataframes(1D arrays)
    into a Numpy buffer. These dataframes are consecutively grabbed from the buffer and decoded into ==[24-bit RGB](https://en.wikipedia.org/wiki/List_of_monochrome_and_RGB_color_formats#24-bit_RGB) _(default)_
    [`ndarray`](https://numpy.org/doc/stable/reference/arrays.ndarray.html#the-n-dimensional-array-ndarray) 3D frames== that are readily available
    through its [`generateFrame()`](#deffcode.ffdecoder.FFdecoder.generateFrame) method.

    FFdecoder API **employs [Sourcer API](../../reference/sourcer) at its backend** for gathering, processing, and validating metadata of all
    multimedia streams available in the given source for formulating/compiling its default FFmpeg pipeline. This metadata information is also
    available as a JSON string with its [`metadata`](#deffcode.ffdecoder.FFdecoder.metadata) property object and can be updated as desired.

    FFdecoder API **supports a wide-ranging media stream** as input source such as USB/Virtual/IP Camera Feed, Multimedia video file,
    Screen Capture, Image Sequence, Network protocols _(such as HTTP(s), RTP/RSTP, etc.)_, so on and so forth.

    Furthermore, FFdecoder API maintains the **standard [OpenCV-Python](https://docs.opencv.org/4.x/d6/d00/tutorial_py_root.html) _(Python API for OpenCV)_ coding syntax**, thereby making it even easier to
    integrate this API in any Computer Vision application.

    !!! example "For usage examples, kindly refer our **[Basic Recipes :cake:](../../recipes/basic)** and **[Advanced Recipes :croissant:](../../recipes/advanced)**"

    !!! info "FFdecoder API parameters are explained [here ➶](params/)"
    """

    def __init__(
        self,
        source: str | list[str],
        source_demuxer: str | list[str] | None = None,
        frame_format: str | None = None,
        custom_ffmpeg: str = "",
        verbose: bool = False,
        **ffparams: Any,
    ) -> None:
        """
        This constructor method initializes the object state and attributes of the FFdecoder Class.

        Parameters:
            source (str): defines the input(`-i`) source filename/URL/device-name/device-path.
            source_demuxer (str): specifies the demuxer(`-f`) for the input source.
            frame_format (str): sets pixel format(`-pix_fmt`) of the decoded frames.
            custom_ffmpeg (str): assigns the location of custom path/directory for custom FFmpeg executable.
            verbose (bool): enables/disables verbose.
            ffparams (dict): provides the flexibility to control supported internal and FFmpeg parameters.
        """

        # enable verbose if specified
        self.__verbose_logs = verbose if (verbose and isinstance(verbose, bool)) else False

        # define whether initializing
        self.__initializing = True

        # handle source list mapping
        self.__is_multi = isinstance(source, list)
        self.__source_list = source if self.__is_multi else [source]

        # define frame pixel-format for decoded frames
        self.__frame_format = (
            frame_format.lower().strip() if isinstance(frame_format, str) else None
        )

        # handles user-defined parameters
        self.__extra_params = {}

        # handles process to be frames written
        self.__process = None

        # handles disabling window for ffmpeg subprocess on Windows
        self.__ffmpeg_window_disabler_patch = False

        # checks machine OS
        self.__machine_OS = platform.system()

        # handles exclusive metadata
        self.__ff_pixfmt_metadata = None  # metadata
        self.__raw_frame_num = None  # raw-frame number
        self.__raw_frame_pixfmt = None  # raw-frame pixformat
        self.__raw_frame_dtype = None  # raw-frame dtype
        self.__raw_frame_depth = None  # raw-frame depth
        self.__raw_frame_resolution = None  # raw-frame resolution/dimension

        # define supported mode of operation
        self.__supported_opmodes = {
            "av": "Audio-Video",  # audio is only for pass-through, not really for audio decoding yet.
            "vo": "Video-Only",
            "imgseq": "Image-Sequence",
            # "ao":"Audio-Only", # reserved for future
        }
        # operation mode variable
        self.__opmode = None

        # handles termination
        self.__terminate_stream = False

        # cleans and reformat user-defined parameters
        self.__extra_params = {
            str(k).strip(): (
                str(v).strip()
                if v is not None and not isinstance(v, (dict, list, int, float, tuple))
                else v
            )
            for k, v in ffparams.items()
        }

        # handles custom Sourcer API params
        sourcer_params = self.__extra_params.pop("-custom_sourcer_params", {})
        # reset improper values
        sourcer_params = {} if not isinstance(sourcer_params, dict) else sourcer_params

        # handles user ffmpeg pre-headers(parameters such as `-re`) parameters (must be a list)
        self.__ffmpeg_prefixes = self.__extra_params.pop("-ffprefixes", [])
        # check if not valid type
        if not isinstance(self.__ffmpeg_prefixes, list):
            # log it
            logger.warning(
                "Discarding invalid `-ffprefixes` value of wrong type: `{}`!".format(
                    type(self.__ffmpeg_prefixes).__name__
                )
            )
            # reset improper values
            self.__ffmpeg_prefixes = []
        elif self.__is_multi:
            # multi-input requires per-source list-of-lists with matching length;
            # reject ambiguous flat lists or length mismatches up front so the
            # cmd builder never sees a malformed shape.
            if self.__ffmpeg_prefixes:
                if not all(isinstance(p, list) for p in self.__ffmpeg_prefixes):
                    raise ValueError(
                        "Multi-input `-ffprefixes` must be a list of per-input lists "
                        "(e.g. `[['-re'], ['-stream_loop', '-1']]`). "
                        "Flat lists are ambiguous in multi-input mode."
                    )
                if len(self.__ffmpeg_prefixes) != len(self.__source_list):
                    raise ValueError(
                        "`-ffprefixes` length ({}) must match `source` list length ({})!".format(
                            len(self.__ffmpeg_prefixes), len(self.__source_list)
                        )
                    )
            sourcer_params["-ffprefixes"] = self.__ffmpeg_prefixes
        else:
            # single-input keeps the flat-list contract; nested lists are only
            # meaningful in multi-input mode, so discard them with a warning.
            if any(isinstance(p, list) for p in self.__ffmpeg_prefixes):
                logger.warning(
                    "Nested lists in `-ffprefixes` are only supported for multi-input sources. Discarding!"
                )
                self.__ffmpeg_prefixes = []
            sourcer_params["-ffprefixes"] = self.__ffmpeg_prefixes

        # pass parameter(if specified) to Sourcer API, specifying where to save the downloaded FFmpeg Static
        # assets on Windows(if specified)
        sourcer_params["-ffmpeg_download_path"] = self.__extra_params.pop(
            "-ffmpeg_download_path", ""
        )

        # handle video and audio stream indexes in case of multiple ones.
        default_stream_indexes = self.__extra_params.pop("-default_stream_indexes", (0, 0))
        # reset improper values
        default_stream_indexes = (
            (0, 0)
            if not isinstance(default_stream_indexes, (list, tuple))
            else default_stream_indexes
        )

        # pass FFmpeg filter to Sourcer API params for processing
        if {"-vf", "-filter_complex"}.intersection(self.__extra_params.keys()):
            key = "-vf" if "-vf" in self.__extra_params else "-filter_complex"
            sourcer_params[key] = self.__extra_params[key]

        # define dict to store user-defined parameters
        self.__user_metadata = {}
        # extract and assign source metadata as dict
        (self.__sourcer_metadata, self.__missing_prop) = (
            Sourcer(
                source=source,
                source_demuxer=source_demuxer,
                verbose=verbose,
                custom_ffmpeg=custom_ffmpeg if isinstance(custom_ffmpeg, str) else "",
                **sourcer_params,
            )
            .probe_stream(default_stream_indexes=default_stream_indexes)
            .retrieve_metadata(force_retrieve_missing=True)
        )

        # handle valid FFmpeg assets location
        self.__ffmpeg = self.__sourcer_metadata["ffmpeg_binary_path"]

        # handle YUV pixel formats(such as `yuv420p`, `yuv444p`, `nv12`, `nv21` etc.)
        # patch for compatibility with OpenCV APIs.
        self.__cv_patch = self.__extra_params.pop("-enforce_cv_patch", False)
        if not (isinstance(self.__cv_patch, bool)):
            self.__cv_patch = False
            self.__verbose_logs and logger.critical(
                "Enforcing OpenCV compatibility patch for YUV/NV video frames."
            )

        # handle Direct Luma (Grayscale) Extraction patch for YUV/NV streams
        self.__extract_luma = self.__extra_params.pop("-extract_luma", False)
        if not (isinstance(self.__extract_luma, bool)):
            self.__extract_luma = False
        if self.__extract_luma:
            self.__verbose_logs and logger.critical(
                "Enforcing Direct Luma (Grayscale) Extraction for YUV/NV video frames."
            )

        # handle asynchronous per-frame metadata extraction via `showinfo` filter
        # when enabled, `generateFrame()` yields (frame, meta_dict) tuples
        self.__extract_metadata = self.__extra_params.pop("-extract_metadata", False)
        if not isinstance(self.__extract_metadata, bool):
            self.__extract_metadata = False
        # metadata queue and reader thread state (populated by __launch_FFdecoderline)
        self.__metadata_queue: queue.Queue[dict[str, Any]] | None = None
        self.__stderr_thread: threading.Thread | None = None
        self.__stderr_stop = threading.Event()
        if self.__extract_metadata:
            self.__verbose_logs and logger.critical(
                "Enabling asynchronous `showinfo` per-frame metadata extraction."
            )

        # handle disabling window for ffmpeg subprocess on Windows OS
        # this patch prevents ffmpeg creation window from opening when
        # building exe files
        ffmpeg_window_disabler_patch = self.__extra_params.pop("-disable_ffmpeg_window", False)
        if ffmpeg_window_disabler_patch and isinstance(ffmpeg_window_disabler_patch, bool):
            # check if value is valid
            if self.__machine_OS != "Windows" or self.__verbose_logs:
                logger.warning(
                    "Optional `-disable_ffmpeg_window` flag is only available on Windows OS with `verbose=False`. Discarding!"
                )
            else:
                self.__ffmpeg_window_disabler_patch = ffmpeg_window_disabler_patch
        else:
            # handle improper values
            self.__ffmpeg_window_disabler_patch = False

        # handle pass-through audio mode works in conjunction with WriteGear [TODO]
        self.__passthrough_mode = self.__extra_params.pop("-passthrough_audio", False)
        if not (isinstance(self.__passthrough_mode, bool)):
            self.__passthrough_mode = False

        # handle mode of operation
        if self.__sourcer_metadata["source_has_image_sequence"]:
            # image-sequence mode
            self.__opmode = "imgseq"
        elif (
            self.__sourcer_metadata[
                "source_has_video"
            ]  # audio is only for pass-through, not really for audio decoding yet.
            and self.__sourcer_metadata["source_has_audio"]
            and self.__passthrough_mode  # [TODO]
        ):
            self.__opmode = "av"
        # elif __defop_mode == "ao" and self.__sourcer_metadata.contains_audio: # [TODO]
        #    self.__opmode = "ao"
        elif self.__sourcer_metadata["source_has_video"]:
            # video-only mode
            self.__opmode = "vo"
        else:
            # raise if unknown mode
            raise ValueError("Unable to find any usable video stream in the given source!")
        # store as metadata
        self.__missing_prop["ffdecoder_operational_mode"] = self.__supported_opmodes[self.__opmode]

        # handle user-defined output framerate
        __framerate = self.__extra_params.pop("-framerate", None)
        if (
            isinstance(__framerate, str)
            and __framerate == "null"  # special mode to discard `-framerate/-r` parameter
        ):
            self.__inputframerate = __framerate
        elif isinstance(__framerate, (float, int)):
            # assign input framerate
            self.__inputframerate = float(__framerate) if __framerate > 0.0 else 0.0
        else:
            # warn if wrong type
            __framerate is not None and logger.warning(
                "Discarding invalid `-framerate` value of wrong type `{}`!".format(
                    type(__framerate).__name__
                )
            )
            # reset to default
            self.__inputframerate = 0.0

        # handle user defined decoded frame resolution
        self.__custom_resolution = self.__extra_params.pop("-custom_resolution", None)
        if (
            isinstance(self.__custom_resolution, str)
            and self.__custom_resolution == "null"  # special mode to discard `-size/-s` parameter
        ) or (
            isinstance(self.__custom_resolution, (list, tuple))
            and len(self.__custom_resolution) == 2  # valid resolution(must be a tuple or list)
        ):
            # log it
            self.__verbose_logs and not isinstance(self.__custom_resolution, str) and logger.debug(
                "Setting raw frames size: `{}`.".format(self.__custom_resolution)
            )
        else:
            # log it
            self.__custom_resolution is not None and logger.warning(
                "Discarding invalid `-custom_resolution` value: `{}`!".format(
                    self.__custom_resolution
                )
            )
            # reset improper values
            self.__custom_resolution = None

    def formulate(self) -> FFdecoder:
        """
        This method formulates all necessary FFmpeg pipeline arguments and executes it inside the FFmpeg `subprocess` pipe.

        **Returns:** A reference to the FFdecoder class object.
        """
        # assign values to class variables on first run
        if self.__initializing:
            if self.__is_multi and not {"-map", "-filter_complex"}.intersection(
                self.__extra_params.keys()
            ):
                raise ValueError(
                    "Multi-input setups require `-map` or `-filter_complex` to route the outputs unambiguously."
                )

            # prepare parameter dict
            input_params = OrderedDict()
            output_params = OrderedDict()

            # dynamically pre-assign a default video-decoder (if not assigned by user).
            supported_vdecodecs = get_supported_vdecoders(self.__ffmpeg)
            default_vdecodec = (
                self.__sourcer_metadata["source_video_decoder"]
                if self.__sourcer_metadata["source_video_decoder"] in supported_vdecodecs
                else "unknown"
            )
            if "-c:v" in self.__extra_params:
                self.__extra_params["-vcodec"] = self.__extra_params.pop("-c:v", default_vdecodec)
            # handle image sequence separately
            if self.__opmode == "imgseq":
                # -vcodec is discarded by default
                # (This is correct or maybe -vcodec required in some unknown case) [TODO]
                self.__extra_params.pop("-vcodec", None)
            elif "-vcodec" in self.__extra_params and self.__extra_params["-vcodec"] is None:
                # special case when -vcodec is not needed intentionally
                self.__extra_params.pop("-vcodec", None)
            else:
                # assign video decoder selected here.
                if "-vcodec" not in self.__extra_params:
                    input_params["-vcodec"] = default_vdecodec
                else:
                    input_params["-vcodec"] = self.__extra_params.pop("-vcodec", default_vdecodec)
                if (
                    default_vdecodec != "unknown"
                    and input_params["-vcodec"] not in supported_vdecodecs
                ):
                    # reset to default if not supported
                    logger.warning(
                        "Provided FFmpeg does not support `{}` video decoder. Switching to default supported `{}` decoder!".format(
                            input_params["-vcodec"], default_vdecodec
                        )
                    )
                    input_params["-vcodec"] = default_vdecodec
                # raise error if not valid decoder found
                if input_params["-vcodec"] not in supported_vdecodecs:
                    raise RuntimeError(
                        "Provided FFmpeg does not support any known usable video-decoders."
                        " Either define your own manually or switch to another FFmpeg binaries(if available)."
                    )

            # handle user-defined number of frames.
            if "-vframes" in self.__extra_params:
                self.__extra_params["-frames:v"] = self.__extra_params.pop("-vframes", None)
            if "-frames:v" in self.__extra_params:
                value = self.__extra_params.pop("-frames:v", None)
                if value is not None and value > 0:
                    output_params["-frames:v"] = value

            # dynamically calculate default raw-frames pixel format(if not assigned by user).
            # notify FFmpeg `-pix_fmt` parameter cannot be assigned directly
            if "-pix_fmt" in self.__extra_params:
                logger.warning(
                    "Discarding user-defined `-pix_fmt` value as it can only be assigned with `frame_format` parameter!"
                )
                self.__extra_params.pop("-pix_fmt", None)
            # get supported FFmpeg pixfmt data with depth and bpp(bits-per-pixel)
            self.__ff_pixfmt_metadata = get_supported_pixfmts(self.__ffmpeg)
            supported_pixfmts = [fmts[0] for fmts in self.__ff_pixfmt_metadata]

            # calculate default pixel-format
            # Check special case  - `frame_format`(or `-pix_fmt`) parameter discarded from pipeline
            self.__frame_format == "null" and logger.critical(
                "Manually discarding `frame_format`(or `-pix_fmt`) parameter from this pipeline."
            )
            # choose between rgb24(if available) or source pixel-format
            # otherwise, only source pixel-format for special case
            default_pixfmt = (
                "rgb24"
                if "rgb24" in supported_pixfmts and self.__frame_format != "null"
                else self.__sourcer_metadata["source_video_pixfmt"]
            )
            # assign output raw-frames pixel format
            rawframe_pixfmt = None
            if self.__frame_format is not None and self.__frame_format in supported_pixfmts:
                # check if valid and supported `frame_format` parameter assigned
                rawframe_pixfmt = self.__frame_format.strip()
                self.__verbose_logs and logger.info(
                    "User-defined `{}` frame pixel-format will be used for this pipeline.".format(
                        rawframe_pixfmt
                    )
                )
            elif (
                "output_frames_pixfmt"
                in self.__sourcer_metadata  # means `format` filter is defined
                and self.__sourcer_metadata["output_frames_pixfmt"] in supported_pixfmts
            ):
                # assign if valid and supported
                rawframe_pixfmt = self.__sourcer_metadata["output_frames_pixfmt"].strip()
                self.__verbose_logs and logger.info(
                    "FFmpeg filter values will be used for this pipeline for defining output pixel-format."
                )
            else:
                # reset to default if not supported
                rawframe_pixfmt = default_pixfmt
                # log it accordingly
                if self.__frame_format is None:
                    logger.info(
                        "Using default `{}` pixel-format for this pipeline.".format(default_pixfmt)
                    )
                else:
                    logger.warning(
                        "{} Switching to default `{}` pixel-format!".format(
                            (
                                "Provided FFmpeg does not supports `{}` pixel-format.".format(
                                    self.__sourcer_metadata.get(
                                        "output_frames_pixfmt", self.__frame_format
                                    )
                                )
                                if self.__frame_format != "null"
                                else "No usable pixel-format defined."
                            ),
                            default_pixfmt,
                        )
                    )

            # dynamically calculate raw-frame datatype based on pixel-format selected
            (self.__raw_frame_depth, rawframesbpp) = next(
                (int(x[1]), int(x[2])) for x in self.__ff_pixfmt_metadata if x[0] == rawframe_pixfmt
            )
            raw_bit_per_component = (
                rawframesbpp // self.__raw_frame_depth if self.__raw_frame_depth else 0
            )
            if 4 <= raw_bit_per_component <= 8:
                self.__raw_frame_dtype = np.dtype("u1")
            elif 8 < raw_bit_per_component <= 16 and rawframe_pixfmt.endswith(("le", "be")):
                if rawframe_pixfmt.endswith("le"):
                    self.__raw_frame_dtype = np.dtype("<u2")
                else:
                    self.__raw_frame_dtype = np.dtype(">u2")
            else:
                # reset to both pixel-format and datatype to default if not supported
                self.__frame_format is not None and logger.warning(
                    "Selected pixel-format `{}` dtype is not supported by FFdecoder API. Switching to default `rgb24` pixel-format!".format(
                        rawframe_pixfmt
                    )
                )
                rawframe_pixfmt = "rgb24"
                self.__raw_frame_dtype = np.dtype("u1")

            # Check if not special case
            if self.__frame_format != "null":
                # assign to FFmpeg pipeline otherwise
                output_params["-pix_fmt"] = rawframe_pixfmt
            # assign to global parameter further usage
            self.__raw_frame_pixfmt = rawframe_pixfmt
            # also override as metadata(if available)
            if "output_frames_pixfmt" in self.__sourcer_metadata:
                self.__sourcer_metadata["output_frames_pixfmt"] = self.__raw_frame_pixfmt

            # handle raw-frame resolution
            # notify FFmpeg `-s` parameter cannot be assigned directly
            if "-s" in self.__extra_params:
                logger.warning(
                    "Discarding user-defined `-s` FFmpeg parameter as it can only be assigned with `-custom_resolution` attribute! Read docs for more details."
                )
                self.__extra_params.pop("-s", None)
            # assign output rawframe resolution
            if self.__custom_resolution is not None and not isinstance(
                self.__custom_resolution, str
            ):
                # assign if assigned by user and not "null"(str)
                self.__raw_frame_resolution = self.__custom_resolution
                self.__verbose_logs and logger.info(
                    "User-defined `{}` frame resolution will be used for this pipeline.".format(
                        self.__raw_frame_resolution
                    )
                )
            elif (
                "output_frames_resolution"
                in self.__sourcer_metadata  # means `scale` filter is defined
                and self.__sourcer_metadata["output_frames_resolution"]
                and len(self.__sourcer_metadata["output_frames_resolution"]) == 2
            ):
                # calculate raw-frame resolution/dimensions based on output.
                self.__raw_frame_resolution = self.__sourcer_metadata["output_frames_resolution"]
            elif (
                self.__sourcer_metadata["source_video_resolution"]
                and len(self.__sourcer_metadata["source_video_resolution"]) == 2
            ):
                # calculate raw-frame resolution/dimensions based on source.
                self.__raw_frame_resolution = self.__sourcer_metadata["source_video_resolution"]
            else:
                # otherwise raise error
                raise RuntimeError(
                    "Both source and output metadata values found Invalid with {} `-custom_resolution` attribute. Aborting!".format(
                        "null" if isinstance(self.__inputframerate, str) else "undefined"
                    )
                )
            # special mode to discard `-size/-s` FFmpeg parameter completely
            if isinstance(self.__custom_resolution, str):
                logger.critical(
                    "Manually discarding `-size/-s` FFmpeg parameter from this pipeline."
                )
            else:
                # add to pipeline
                dimensions = "{}x{}".format(
                    self.__raw_frame_resolution[0], self.__raw_frame_resolution[1]
                )
                output_params["-s"] = str(dimensions)
            # log if filters or default source is used
            self.__verbose_logs and (
                self.__custom_resolution is None or isinstance(self.__custom_resolution, str)
            ) and logger.info(
                "{} for this pipeline for defining output resolution.".format(
                    "FFmpeg filter values will be used"
                    if "output_frames_resolution" in self.__sourcer_metadata
                    else "Default source resolution will be used"
                )
            )

            # dynamically calculate raw-frame framerate based on source (if not assigned by user).
            if not isinstance(self.__inputframerate, str) and self.__inputframerate > 0.0:
                # assign if assigned by user and not "null"(str)
                output_params["-framerate"] = str(self.__inputframerate)
                self.__verbose_logs and logger.info(
                    "User-defined `{}` output framerate will be used for this pipeline.".format(
                        str(self.__inputframerate)
                    )
                )
            elif (
                "output_framerate" in self.__sourcer_metadata  # means `fps` filter is defined
                and self.__sourcer_metadata["output_framerate"] > 0.0
            ):
                # special mode to discard `-framerate/-r` FFmpeg parameter completely
                if self.__inputframerate == "null":
                    logger.critical(
                        "Manually discarding `-framerate/-r` FFmpeg parameter from this pipeline."
                    )
                else:
                    # calculate raw-frame framerate based on output
                    output_params["-framerate"] = str(self.__sourcer_metadata["output_framerate"])
                self.__verbose_logs and logger.info(
                    "FFmpeg filter values will be used for this pipeline for defining output framerate."
                )
            elif self.__sourcer_metadata["source_video_framerate"] > 0.0:
                # special mode to discard `-framerate/-r` FFmpeg parameter completely
                if self.__inputframerate == "null":
                    logger.critical(
                        "Manually disabling `-framerate/-r` FFmpeg parameter for this pipeline."
                    )
                else:
                    # calculate raw-frame framerate based on source
                    output_params["-framerate"] = str(
                        self.__sourcer_metadata["source_video_framerate"]
                    )
                self.__verbose_logs and logger.info(
                    "Default source framerate will be used for this pipeline for defining output framerate."
                )
            else:
                # otherwise raise error
                raise RuntimeError(
                    "Both source and output metadata values found Invalid with {} `-framerate` attribute. Aborting!".format(
                        "null" if isinstance(self.__inputframerate, str) else "undefined"
                    )
                )

            # add rest to output parameters
            output_params.update(self.__extra_params)

            # chain the `showinfo` filter onto the pipeline when per-frame
            # metadata extraction is enabled. A pre-existing `-vf` is preserved
            # via comma-concatenation; `-filter_complex` is not supported here
            # because graph-label routing is ambiguous.
            if self.__extract_metadata:
                if "-filter_complex" in output_params:
                    logger.warning(
                        "`-extract_metadata` is incompatible with `-filter_complex`. Disabling metadata extraction."
                    )
                    self.__extract_metadata = False
                else:
                    existing_vf = output_params.get("-vf", "")
                    output_params["-vf"] = f"{existing_vf},showinfo" if existing_vf else "showinfo"

            # dynamically calculate raw-frame numbers based on source (if not assigned by user).
            # TODO Added support for `-re -stream_loop` and `-loop`
            if "-frames:v" in input_params:
                self.__raw_frame_num = input_params["-frames:v"]
            elif (
                self.__sourcer_metadata["approx_video_nframes"] is not None
                and self.__sourcer_metadata["approx_video_nframes"] > 0
            ):
                self.__raw_frame_num = self.__sourcer_metadata["approx_video_nframes"]
            else:
                self.__raw_frame_num = None
                # log that number of frames are unknown
                self.__verbose_logs and logger.info(
                    "Number of frames in given source are unknown. Live/Network/Looping stream detected!"
                )

            # log Mode of Operation
            self.__verbose_logs and logger.critical(
                "Activating {} Mode of Operation.".format(self.__supported_opmodes[self.__opmode])
            )

            # compose the Pipeline using formulated FFmpeg parameters
            self.__launch_FFdecoderline(input_params, output_params)

            # inform the initialization is completed
            self.__initializing = False
        else:
            # warn if pipeline is recreated
            logger.error("This pipeline is already created and running!")
        return self

    def __fetchNextfromPipeline(self) -> np.ndarray | None:
        """
        This Internal method to fetch next dataframes(1D arrays) from `subprocess` pipe's standard output(`stdout`) into a Numpy buffer.
        """
        assert self.__process is not None, (
            "Pipeline is not running! You must call `formulate()` method first."
        )

        # formulated raw frame size and apply YUV pixel formats patch(if applicable)
        raw_frame_size = (
            (self.__raw_frame_resolution[0] * (self.__raw_frame_resolution[1] * 3 // 2))
            if self.__raw_frame_pixfmt.startswith(("yuv", "nv"))
            and (self.__cv_patch or self.__extract_luma)
            else (
                self.__raw_frame_depth
                * self.__raw_frame_resolution[0]
                * self.__raw_frame_resolution[1]
            )
        )
        # next dataframe as numpy ndarray
        nparray = None
        try:
            # read bytes frames from buffer
            nparray = np.frombuffer(
                self.__process.stdout.read(raw_frame_size * self.__raw_frame_dtype.itemsize),
                dtype=self.__raw_frame_dtype,
            )
        except Exception as e:
            raise RuntimeError("Frame buffering failed with error: {}".format(str(e)))
        return nparray if nparray is not None and len(nparray) == raw_frame_size else None

    def __fetchNextFrame(self) -> np.ndarray | None:
        """
        This Internal method grabs and decodes next 3D `ndarray` video-frame from the buffer.
        """
        # Read next and reconstruct as numpy array
        frame = self.__fetchNextfromPipeline()
        # check if empty
        if frame is None:
            return frame
        elif self.__extract_luma and self.__raw_frame_pixfmt.startswith(("yuv", "nv")):
            # Extract pure Luma (Y channel) - sits uncompressed at the top of the YUV bytestream
            # Slice the first W*H bytes and reshape to 2D
            luma_size = self.__raw_frame_resolution[1] * self.__raw_frame_resolution[0]
            frame = frame[:luma_size].reshape(
                (
                    self.__raw_frame_resolution[1],
                    self.__raw_frame_resolution[0],
                )
            )
        elif self.__raw_frame_pixfmt.startswith("gray"):
            # reconstruct exclusive `gray` frames
            frame = frame.reshape(
                (
                    self.__raw_frame_resolution[1],
                    self.__raw_frame_resolution[0],
                    self.__raw_frame_depth,
                )
            )[:, :, 0]
        elif self.__raw_frame_pixfmt.startswith(("yuv", "nv")) and self.__cv_patch:
            # reconstruct exclusive YUV formats frames for OpenCV APIs
            frame = frame.reshape(
                self.__raw_frame_resolution[1] * 3 // 2,
                self.__raw_frame_resolution[0],
            )
        else:
            # reconstruct default frames
            frame = frame.reshape(
                (
                    self.__raw_frame_resolution[1],
                    self.__raw_frame_resolution[0],
                    self.__raw_frame_depth,
                )
            )
        # return frame
        return frame

    def generateFrame(self) -> Generator[np.ndarray, None, None]:
        """
        This method returns a [Generator function](https://wiki.python.org/moin/Generators)
        _(also an Iterator using `next()`)_ of video frames, grabbed continuously from the buffer.

        When the `-extract_metadata` parameter is enabled the generator yields
        `(frame, metadata)` tuples, where `metadata` is a dict with keys
        `frame_num`, `pts_time`, `is_keyframe`, and `frame_type`.
        """
        if self.__raw_frame_num is None or not self.__raw_frame_num:
            while not self.__terminate_stream:  # infinite raw frames
                frame = self.__fetchNextFrame()
                if frame is None:
                    self.__terminate_stream = True
                    break
                yield self.__attach_metadata(frame)
        else:
            for _ in range(self.__raw_frame_num):  # finite raw frames
                frame = self.__fetchNextFrame()
                if frame is None:
                    self.__terminate_stream = True
                    break
                yield self.__attach_metadata(frame)

    def __attach_metadata(self, frame: np.ndarray):
        """
        Internal: zip the just-decoded frame with the next queued metadata
        dict when `-extract_metadata` is enabled. Uses a bounded timeout so a
        mis-emitting filter chain can never deadlock the consumer.
        """
        if not self.__extract_metadata:
            return frame
        try:
            meta = self.__metadata_queue.get(timeout=10.0)
        except queue.Empty:
            logger.warning(
                "Timed-out waiting for `showinfo` metadata. Yielding frame with empty metadata."
            )
            meta = None
        return (frame, meta)

    def __enter__(self) -> FFdecoder:
        """
        Handles entry with the `with` statement. See [PEP343 -- The 'with' statement'](https://peps.python.org/pep-0343/).

        **Returns:** Output of `formulate()` method.
        """
        return self.formulate()

    def __exit__(
        self,
        exc_type: type[BaseException] | None,
        exc_val: BaseException | None,
        exc_tb: TracebackType | None,
    ) -> None:
        """
        Handles exit with the `with` statement. See [PEP343 -- The 'with' statement'](https://peps.python.org/pep-0343/).
        """
        self.terminate()

    @property
    def metadata(self) -> str:
        """
        A property object that dumps metadata information as JSON string.

        **Returns:** Metadata as JSON string.
        """
        # import dependency
        import json

        # return complete metadata information as JSON string
        return json.dumps(
            {
                **self.__sourcer_metadata,  # source video
                **self.__missing_prop,  # missing properties
                **self.__user_metadata,  # user-defined
            },
            indent=2,
        )

    @metadata.setter
    def metadata(self, value: dict[str, Any]) -> None:
        """
        A property object that updates metadata information with user-defined dictionary.

        Parameters:
            value (dict): User-defined dictionary.
        """
        # check if value dict type
        if value and isinstance(value, dict):
            # log it
            self.__verbose_logs and logger.info("Updating Metadata...")
            # extract any source and output internal metadata keys
            default_keys = set(value).intersection(
                {**self.__sourcer_metadata, **self.__missing_prop}
            )
            # counterpart source properties for each output properties
            counterpart_prop = {
                "output_frames_resolution": "source_video_resolution",
                "output_frames_pixfmt": "source_video_pixfmt",
                "output_framerate": "source_video_framerate",
            }
            # iterate over source metadata keys and sanitize it
            for key in default_keys or []:
                if key == "source":
                    # metadata properties that cannot be altered
                    logger.warning(
                        "`{}` metadata property value cannot be altered. Discarding!".format(key)
                    )
                elif key in self.__missing_prop:
                    # missing metadata properties are unavailable and read-only
                    # notify user about alternative counterpart property (if available)
                    logger.warning(
                        "`{}` metadata property is read-only".format(key)
                        + (
                            ". Try updating `{}` property instead!".format(counterpart_prop[key])
                            if key in counterpart_prop
                            else " and cannot be updated!"
                        )
                    )
                elif isinstance(value[key], type(self.__sourcer_metadata[key])):
                    # check if correct datatype as original
                    self.__verbose_logs and logger.info(
                        "Updating `{}`{} metadata property to `{}`.".format(
                            key,
                            (" and its counterpart" if key in counterpart_prop.values() else ""),
                            value[key],
                        )
                    )
                    # update source metadata if valid
                    self.__sourcer_metadata[key] = value[key]
                    # also update missing counterpart property (if available)
                    counter_key = next((k for k, v in counterpart_prop.items() if v == key), "")
                    if counter_key:
                        self.__missing_prop[counter_key] = value[key]
                else:
                    # otherwise discard and log it
                    logger.warning(
                        "Manually assigned `{}` metadata property value is of invalid type. Discarding!"
                    ).format(key)
                # delete invalid key
                del value[key]
            # There is no concept of a tuple in the JSON format.
            # Python's `json` module converts Python tuples to JSON lists
            # because that's the closest thing in JSON to a tuple.
            any(isinstance(value[x], tuple) for x in value) and logger.warning(
                "All TUPLE metadata properties will be converted to LIST datatype. Read docs for more details."
            )
            # update user-defined metadata
            self.__user_metadata.update(value)
        else:
            # otherwise raise error
            raise ValueError("Invalid datatype metadata assigned. Aborting!")

    def __launch_FFdecoderline(
        self, input_params: dict[str, Any], output_params: dict[str, Any]
    ) -> None:
        """
        This Internal method executes FFmpeg pipeline arguments inside a `subprocess` pipe in a new process.

        Parameters:
            input_params (dict): Input FFmpeg parameters
            output_params (dict): Output FFmpeg parameters
        """
        # convert input parameters to list
        input_parameters = dict2Args(input_params)

        # convert output parameters to list
        output_parameters = dict2Args(output_params)

        # format command
        cmd = [self.__ffmpeg] + (["-hide_banner"] if not self.__verbose_logs else [])
        if self.__is_multi:
            for idx, _src in enumerate(self.__source_list):
                _prefixes = (
                    self.__ffmpeg_prefixes[idx]
                    if len(self.__ffmpeg_prefixes) > idx
                    and isinstance(self.__ffmpeg_prefixes[idx], list)
                    else []
                )
                cmd += _prefixes
                # apply standard input parameters ONLY to the primary source
                if idx == 0:
                    cmd += input_parameters
                _src_meta = (
                    self.__sourcer_metadata["sources"][idx]
                    if "sources" in self.__sourcer_metadata
                    else {}
                )
                if _src_meta.get("source_demuxer"):
                    cmd += ["-f", _src_meta["source_demuxer"]]
                cmd += ["-i", _src]
        else:
            cmd += self.__ffmpeg_prefixes
            cmd += input_parameters
            cmd += (
                ["-f", self.__sourcer_metadata["source_demuxer"]]
                if ("source_demuxer" in self.__sourcer_metadata)
                else []
            )
            cmd += ["-i", self.__sourcer_metadata["source"]]

        cmd += output_parameters
        cmd += ["-f", "rawvideo", "-"]
        # When metadata extraction is enabled we must capture stderr regardless
        # of verbose mode so the background reader thread can parse showinfo
        # lines. Without PIPE the reader would have nothing to read (verbose
        # inherits parent stderr; silent discards it).
        if self.__extract_metadata:
            stderr_target = sp.PIPE
        elif self.__verbose_logs:
            stderr_target = None
        else:
            stderr_target = sp.DEVNULL

        # compose the FFmpeg process
        if self.__verbose_logs:
            logger.debug("Executing FFmpeg command: `{}`".format(" ".join(cmd)))
            self.__process = sp.Popen(cmd, stdin=sp.DEVNULL, stdout=sp.PIPE, stderr=stderr_target)
        else:
            # In silent mode
            self.__process = sp.Popen(
                cmd,
                stdin=sp.DEVNULL,
                stdout=sp.PIPE,
                stderr=stderr_target,
                creationflags=(  # this prevents ffmpeg creation window from opening when building exe files on Windows
                    sp.DETACHED_PROCESS if self.__ffmpeg_window_disabler_patch else 0
                ),
            )

        # spin up the stderr reader thread that parses `showinfo` lines and
        # feeds per-frame metadata dicts into the queue consumed by generateFrame()
        if self.__extract_metadata:
            self.__metadata_queue = queue.Queue()
            self.__stderr_stop.clear()
            self.__stderr_thread = threading.Thread(target=self.__read_stderr, daemon=True)
            self.__stderr_thread.start()

    def __read_stderr(self) -> None:
        """
        Internal: background daemon that parses FFmpeg `showinfo` lines off
        stderr and pushes per-frame metadata dicts onto `__metadata_queue`.
        Exits when FFmpeg closes stderr or when `__stderr_stop` is signalled.
        """
        assert self.__process is not None and self.__process.stderr is not None
        stderr = self.__process.stderr
        try:
            for line in iter(stderr.readline, b""):
                if self.__stderr_stop.is_set():
                    break
                decoded = line.decode("utf-8", errors="ignore")
                match = _SHOWINFO_REGEX.search(decoded)
                if not match:
                    continue
                meta = {
                    "frame_num": int(match.group(1)),
                    "pts_time": float(match.group(2)),
                    "is_keyframe": bool(int(match.group(3))),
                    "frame_type": match.group(4),
                }
                self.__metadata_queue.put(meta)
        except (ValueError, OSError):
            # stderr pipe closed mid-readline during termination
            pass
        finally:
            # sentinel so consumers unblock on EOF
            self.__metadata_queue.put(None)

    def terminate(self) -> None:
        """
        Safely terminates all processes.
        """

        # signal we are closing
        self.__verbose_logs and logger.debug("Terminating FFdecoder Pipeline...")
        self.__terminate_stream = True
        self.__stderr_stop.set()
        # check if no process was initiated at first place
        if self.__process is None or self.__process.poll() is not None:
            logger.info("Pipeline already terminated.")
            return
        # Attempt to close pipeline.
        # close `stdin` output
        self.__process.stdin and self.__process.stdin.close()
        # close `stdout` output
        self.__process.stdout and self.__process.stdout.close()
        # close `stderr` so the background reader thread's blocking readline() unblocks
        self.__process.stderr and self.__process.stderr.close()
        # terminate/kill process if still processing
        self.__process.poll() is None and self.__process.terminate()
        # wait if not exiting
        self.__process.wait()
        # join the stderr reader thread so it does not outlive the pipeline
        if self.__stderr_thread is not None and self.__stderr_thread.is_alive():
            self.__stderr_thread.join(timeout=2.0)
        self.__stderr_thread = None
        self.__process = None
        logger.info("Pipeline terminated successfully.")
